Gasoline diesel tank Double Wall UL142 Certificate Portable Fuel tank with Pump Sale for America, China Suppliers, Factory

Model	NW-1000	NW-2000	NW-3000	NW-4000	NW-5000	NW-6000
Capacity (Normal/Safe fill (95%))	950/900 L	2090/1987 L	2980/2831 L	3845/3653 L	4600/4368 L	5683/5399 L
Dimension (LxWxH)	1145x1140x1300 mm	2280x1140x1280mm	2320x1570x1285mm	2285x2206x1185mm	2320x2320x1300mm	2320x2802x1300mm
Empty Weight	440Kg	852Kg	1045Kg	1268Kg	1690Kg	1980Kg
Material	Carbon steel
Tank type	Double-walled cube tank
Testing pressure	35Mpa
Fill Dip / Fuel Gauge, Inlet, Outlet	DN40
E-Vent, Free Vent	DN50
Application	Waste fuel, petrol, waste oil, diesel, coolant, any liquid, other than a flammable liquid under normal temperature.

Gasoline diesel tank double wall UL142 certificate portable fuel tank with pump sale for America

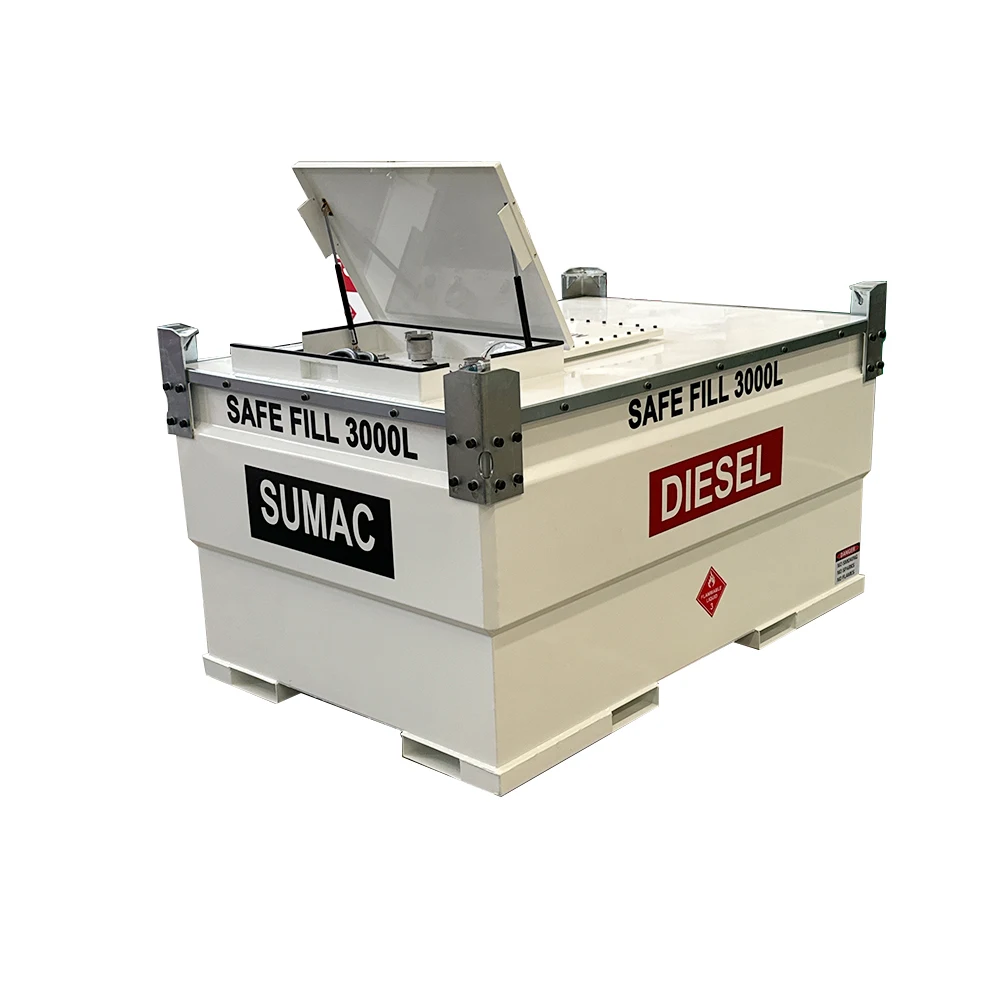

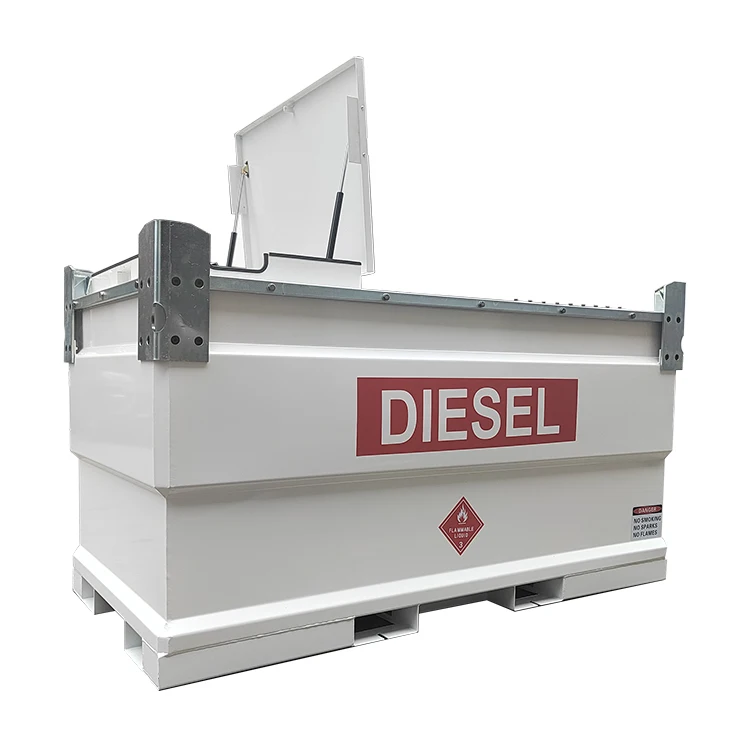

SUMAC NW Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L. NW Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.

With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning, The freestanding “cube style” design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements. Durable stationary design with double-wall containment for added safety and security.

Comes With

· Meet strict quality standards, CE approved. · All seams are welded to exacting standards. · 4 Way forklift pockets. · The tanks fit with SUMAC supplied free vent, gravity outlet valve. · Stackable, and with 1pc lockable lids and maintenance hole. · Supplied with all required statutory decals. We can also customize logo according to customer needs. · Lockable containment area for pump, hose and nozzle storage. · Designed to be stacked for storage and can transport when empty or full oil. · Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner. · Removable manhole - Easy maintenance and cleaning of carbon steel inner tank.

· Gravity outlet valve - DN50, NPT,UL listing

· Free Vent - DN50 NPT

· Manhole

· Galvanized Lifting Ear

Lockable cabinet (Oil pump and ports are secure and spills are contained)

Optional Accessories

· Fuel Gauge

· Dipstick

Fuel Pump

This big flow rate pump is fueling the diesel, kerosene, not for gasoline. And its pump head with iron material, and with 100% copper line, its specification as follows:

· With CE certification, and IP 54 Protection

· Pump with by pass and self priming · 4m delivery hose and 1.5m suction hose · Filter or Check valve

Technical Data

Model	FD60
Flow rate	60L/min
Power	375W
Deliver hose	4m
Nozzle	Automatic nozzle 3/4’ or 1/2’
Filter	Yes
Voltage	AC220V or DC12V/24V

· Farm

· Agriculture

· Power Plant

· Oil & Gas

· Earth-moving

· Desert

Q: What is your standard configuration for connections? A: Fill Dip,Inlet,Fuel Gauge,Outlet: DN40 E-Vent,FreVent: DN50

Q: Are your oil tanks rust-proof? A: Yes, our paint is electrostatic spraying of polyester powder, we called powder coating paint, oil resistance, antirust treatment. Q: Is the fuel tank easy for land transport? A: Yes. Q: Does the fuel tank has lockable cabinets for pump? A: Yes. Q: Can it come with fuel pump? A: Yes, we can equip with different kinds of fuel pump according to customer needs. Q: Is there any way to check for fluid between the skins (1st and 2nd layer)? A: Oil tank with inspection port. Q: Can you confirm if the tanks are supplied with, dip stick & the vent? A: Yes. The NW series tank is equipped with gravity outlet valve and free vent. You can choose dipstick or fuel gauge according to your needs. Q: Is there a suction tube on the outlet port for evac of the waste oil? A: Yes. Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity. A: Yes. Q: Is the tank easy to shipment? A: Yes, the height of our fuel tank is designed according to the size of the container and can be stacked. Q: Can the tank be customized? A: Yes, Sumac has a professional design and engineering team that can customize the tank according to customers requirements. Q: Can I do your agent in our country or some district? A: Yes, if you quantity is enough, no problem, the 40HQ container is okay. Q: How can I pay the money without risk? A: You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
